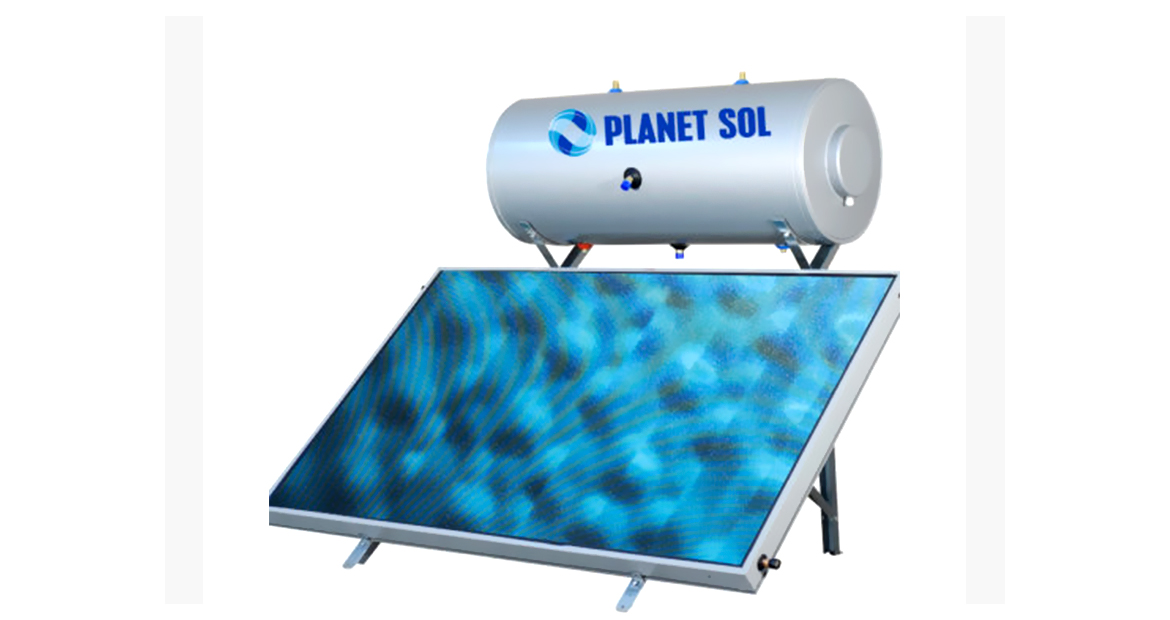

Outer cover: Metallic outer cover in grey colour (RAL)
Inner tank: Steel sheet EN 10130AIDCP 3.00mm thickness. Inner tank coating made of double liquid enamel processed at 860° C (glass) according DIN4753
Dimensions:580mm x 1820mm length
Heat exchanger: mantel type, of the same material of the tank and thickness of 2.00mm
Insulation: 60mm thickness, of expended P.U. CFC free of high density 52kg/m³ Pressure: 10 bar
Working pressure: 10bar
Working pressure: 10 bar
The tank includes: Corrosion protection with Mg rod – electrical element 1.5kw till 4kw
Collector Specifications ( 2 Pieces ) :
Dimensions: (length x width x height): 1180 x 1900 x 85mm
Case ( 100mm section ) made of anodised electrostatically powder-painted aliminium profile for extended life
Case made (100mm section) made of anodised electrostatically powder-painted aluminium profile for extended life.
EPDM rubber and silicone seal for maximum waterproof protection.
Harp Type Absorber made of copper tubes Φ 8mm risers Φ 22mm headers.
Galvanised steel sheet rear cover 0.5mm thickness.
Heavy duty absorber copper tubes laser welded to the absorbing plate for instant heat transmission.
Aluminium absorbing plate 0.5mm 0.5mm coated with Chrome-Nickel blue selective layer.
Solar irradiation absorbance factor a=0.95 ± 2% and reflection e=0.5 ± 2%
Insulation and glass fibre wool of density 80kg/m³ and 30kg/m³ accordingly, ensuring high performance and minimum heat loss.
The system includes: corrosion protection with Mg rod – electrical element 1.5kw till 4kw – closed circuit valve 3bar – safety valve 10bar / non return valve – accessories and transitions connectors – antifreeze
Frame: Mounting structure from hot galvanized steel 2.00mm thickness
